Thrombosis
As intravenous contrast is only rarely administered during a PET/CT scan, it is fairly uncommon to identify thrombus on the CT portion of the exam.
As acute and chronic thrombi are often FDG-avid (acute thrombus is generally more avid than chronic thrombus), thrombus is occasionally identified on the PET portion of the exam.
It is especially important to keep this diagnosis in mind when metabolic activity conforms to the morphology of a vessel.
FDG-avid thrombosis may be seen with:
- Acute or chronic thrombosis
- Arterial or venous thrombosis
- Tumor thrombus or bland thrombus

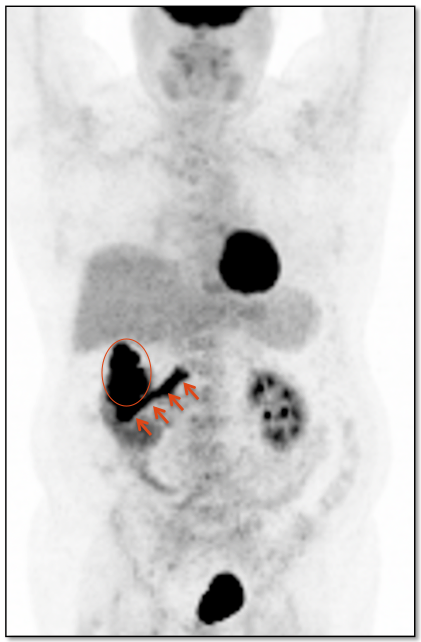

Case 1
Case 1 (Image 2)

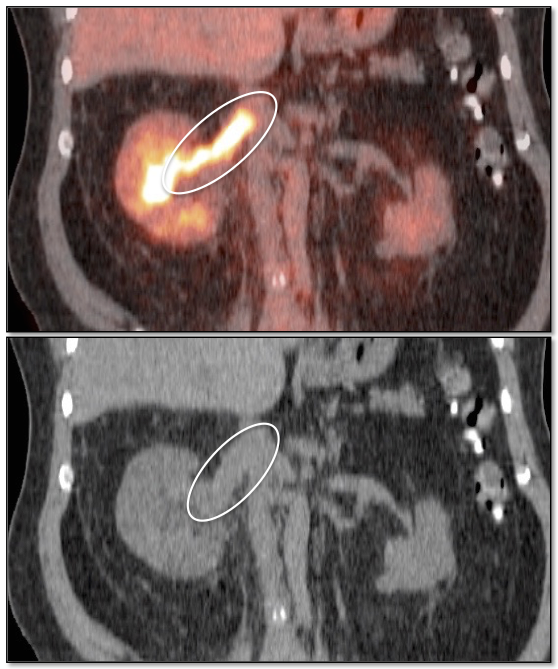

Coronal images demonstrate intense metabolic activity extending from the mid-pole of the kidney to the inferior vena cava, along the course of the right renal vein. This is consistent with metabolically active tumor thrombus in the renal vein.
Case 1 (Image 3)
Axial images (limited without intravenous contrast) confirm hypermetabolic tumor thrombus in the right renal vein, extending into the inferior vena cava.
Case 2
Case 2 (Image 2)
An intensely avid filling defect is noted within the left superficial femoral vein, consistent with active thrombus (confirmed by Doppler). Note the associated soft tissue swelling of the left thigh.
Case 2 (Image 3)
Sagittal images (limited without intravenous contrast) demonstrate the significant extent of this metabolically active thrombus.
Case 3
Case 3 (Image 2)

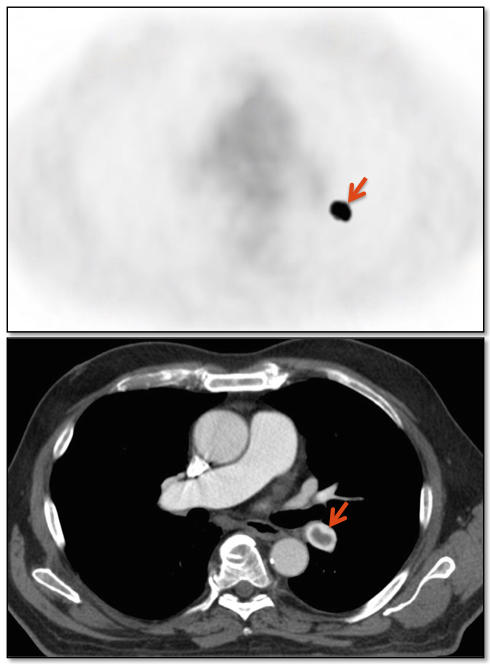

Contrasted-enhanced CT imaging demonstrates a prominent filling defect within the left main pulmonary artery, corresponding precisely to the PET abnormality. These findings are consistent with a pulmonary embolus.
