Non-Malignant, Yet Clinically Significant, FDG-Avid Abnormalities
During routine PET/CT evaluation of malignancy, we frequently encounter non-malignant, yet clinically significant, FDG-avid CT abnormalities that clearly require prompt reporting.
Common examples include:
- Acute diverticulitis: If associated pericolonic stranding is not present, be cautious that this is not a malignancy hidden in an area of diverticulosis. You may have to occasionally “hedge” in your report.
- Colitis: Make sure the uptake is “long-segment” (not focal) or you may overlook a malignancy.
- Cholecystitis: Do not miss a gallbladder carcinoma. Ultrasound correlation is required.
- Pneumonia: Make sure this diagnosis fits the patient’s clinical presentation, or you will miss a malignancy.
- Abscess: Make sure this diagnosis fits the patient’s clinical presentation.
- Pancreatitis: Make sure this diagnosis fits the patient’s clinical presentation.
Case 1
Case 2
Case 2 (Image 2)

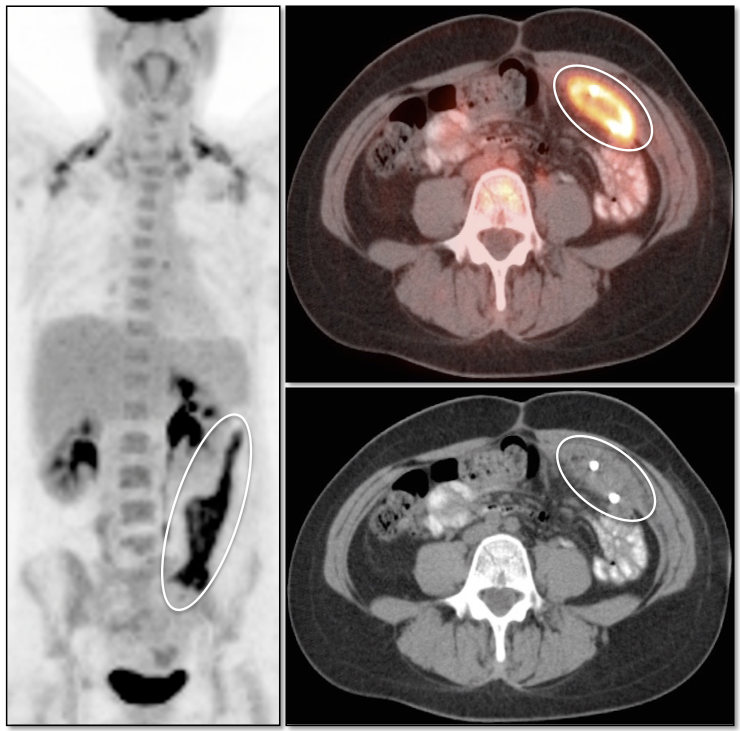

Axial images demonstrate intensely FDG-avid bowel wall thickening throughout the left colon. Its long-segment involvement is consistent with colitis, not neoplasm (in this case ulcerative colitis).
Case 3
Case 4
Case 5
Case 6
Case 6 (Image 2)

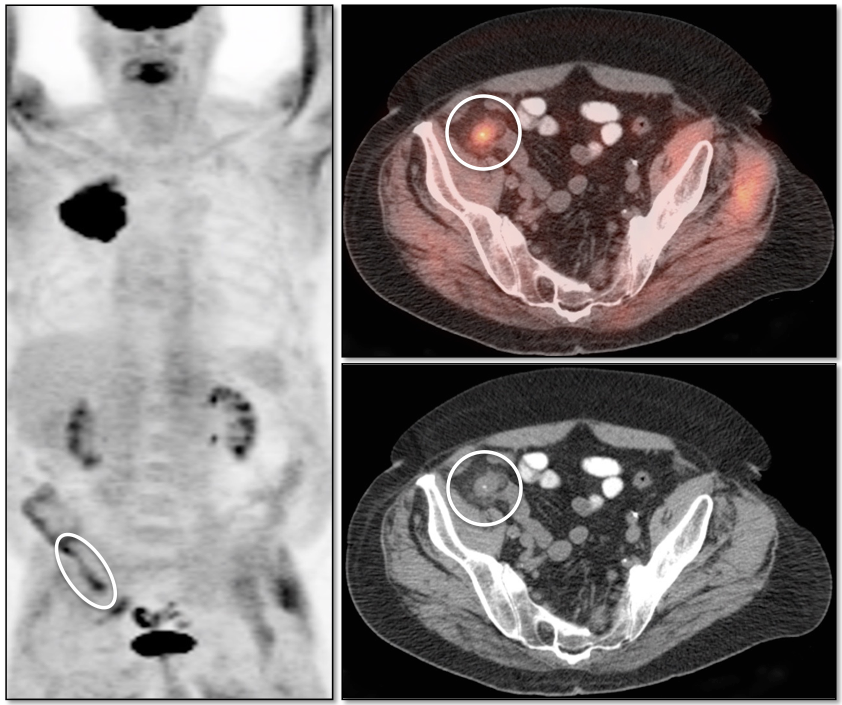

Coronal views of the FDG avid appendix, appearing mildly thickened. This finding clearly warrants a phone call to the referring clinician.
Case 7
Case 7 (Image 2)

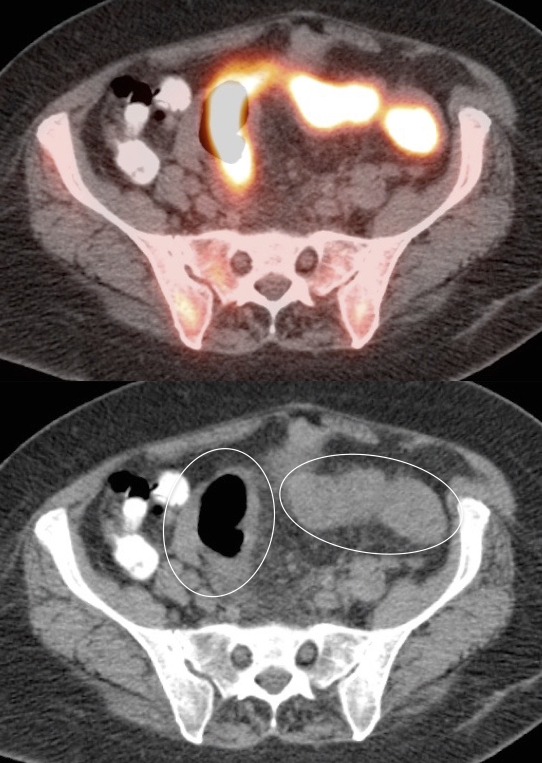

Axial images demonstrate a segment of transverse colon extending into a ventral hernia defect. Mild associated FDG-avid bowel wall thickening is present. The elongated nature of the FDG-avid wall thickening is more suggestive of inflammation than neoplasm. His clinical history was diagnostic: intermittent bowel incarceration in the ventral hernia, with subsequent acute and chronic inflammatory changes.
