Lung
Normal lung parenchyma is non-avid, with SUV’s (maximum, lean body mass) ranging from 0.3-0.6.
Respiratory motion is very common problem when evaluating the pulmonary parenchyma, as the CT portion of the exam typically does not utilizing a breath-hold technique (to minimize misregistration artifact).
Most radiologists recommend shallow tidal breathing during the CT exam, although an end-expiration tidal breath-hold is advocated by some (addressed here).
The following specific pulmonary topics are covered separately:
- Lung Nodules (here)
- Lung Cancer (here)
- Radiation-Induced Lung Disease (RILD) (here)
- Post-Therapeutic Inflammatory Changes/Scarring (here)
- Acute Infiltrate/Inflammation/Atelectasis (here)
Case 1
Case 2
Case 2 (Image 2)
Follow up scan demonstrates complete resolution of the mild atelectasis noted on the prior examination.
Case 3
Case 4
Case 4 (Image 2)

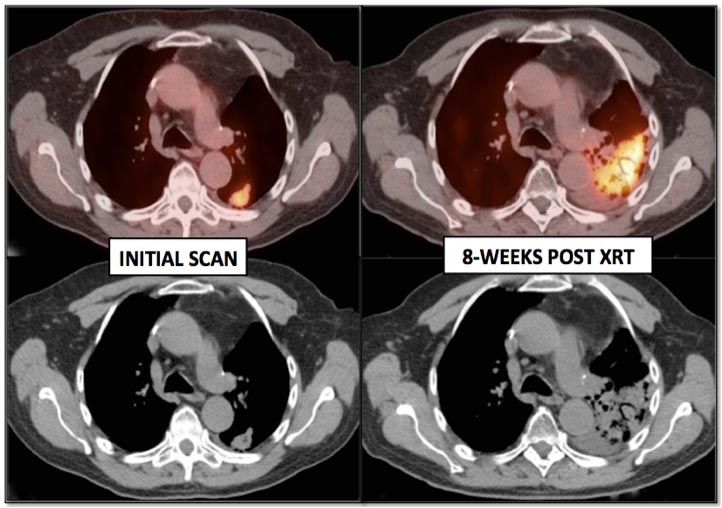

Acute Radiation Pneumonitis: The post-radiation therapy scan now demonstrates a large and intensely avid parenchymal consolidation, containing air bronchograms. This is a typical appearance of acute radiation pneumonitis after treatment of a lung cancer. Note that underlying active malignancy cannot be excluded within this area of intense inflammation, requiring follow up.
Case 5
Case 5 (Image 2)
Intensely avid right lower lobe pulmonary mass, consistent with a primary lung cancer.
Case 5 (Image 3)
Enlarged FDG-avid metastatic subcarinal lymph node. Intense uptake also involves the right hilum. Although associated enlarged hilar lymph nodes are not visualized on the CT images without intravenous contrast, the appearance is highly suspicious for metastatic right hilar adenopathy.
