Pancreatic Cancer
Fast Facts:
- 3% of all cancers
- 6% of all cancer deaths
- Aggressive: 5-year survival rate of 5%
Types:
- Adenocarcinomas: 95%
- Neuroendocrine Tumors: 4-5%
- Lymphoma: <1%
Indications for PET/CT Scan:
Diagnosis:
- Valuable role in ruling out malignancy for an equivocal mass noted on a prior CT or MRI (estimated accuracy of 85%-93%).
Initial Staging:
- Limited value in the assessment of local resectability. A contrast-enhanced CT scan is required to determine the relationship of the mass to the adjacent vasculature.
- The utility of PET/CT for staging lies in its assessment of regional nodes and distant metastatic disease.

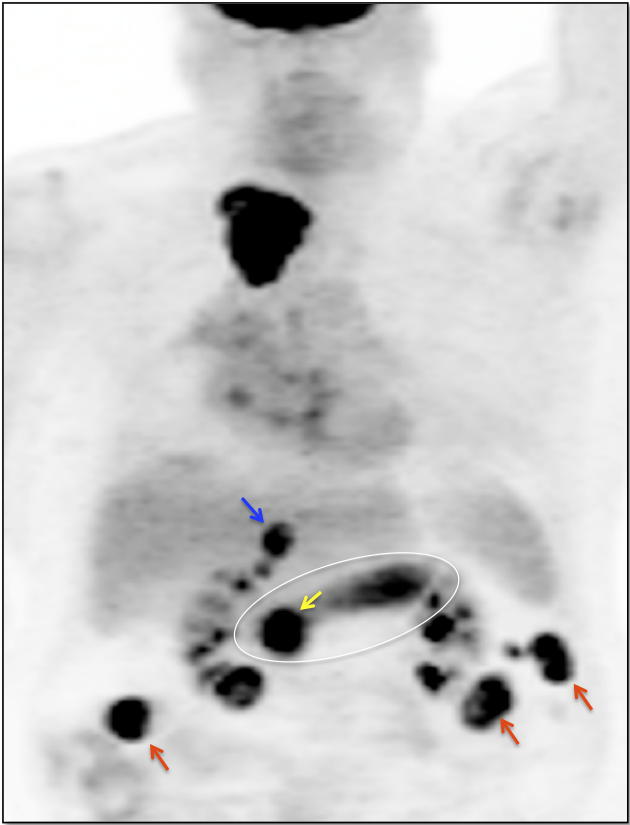

Distant Disease: Most commonly to the liver, peritoneum, lung, pleura, bones and adrenal glands.
Assessing Response to Therapy & Prognosis:
- Early Response: Non-responders can be offered alternative therapy.
- Late Response: Assess success or failure of therapy, and ultimate outcome.
Recurrence & Restaging:
- Restaging suspected recurrence.
- Distinguishing recurrence from post-therapeutic inflammation.
Criteria for “Active Malignancy”:
Although many patients with pancreatic cancer have a biopsy-proven diagnosis prior to PET/CT scanning, it is not uncommon for a PET/CT scan to be ordered to assess whether an equivocal lesion is benign or malignant.

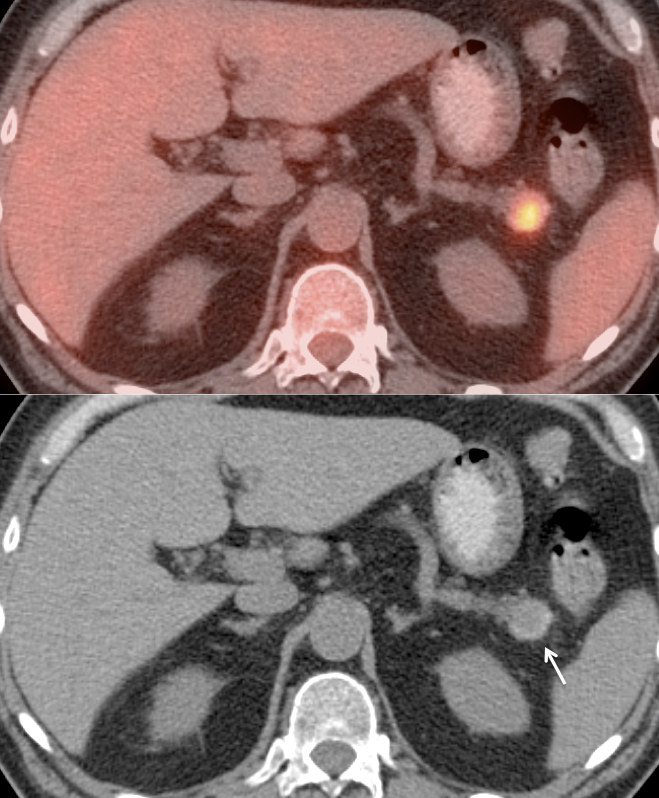

- Any focus of metabolic activity (well-defined or not) involving the pancreas should raise a suspicion for malignancy.

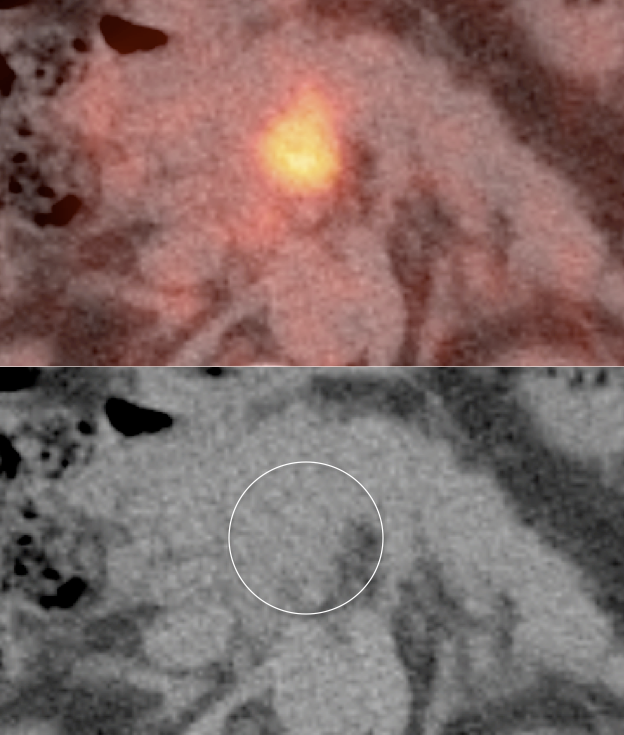

- An accompanying well-defined soft tissue abnormality will not always be detected on the co-registered CT images (especially as these studies are almost always performed without intravenous contrast).

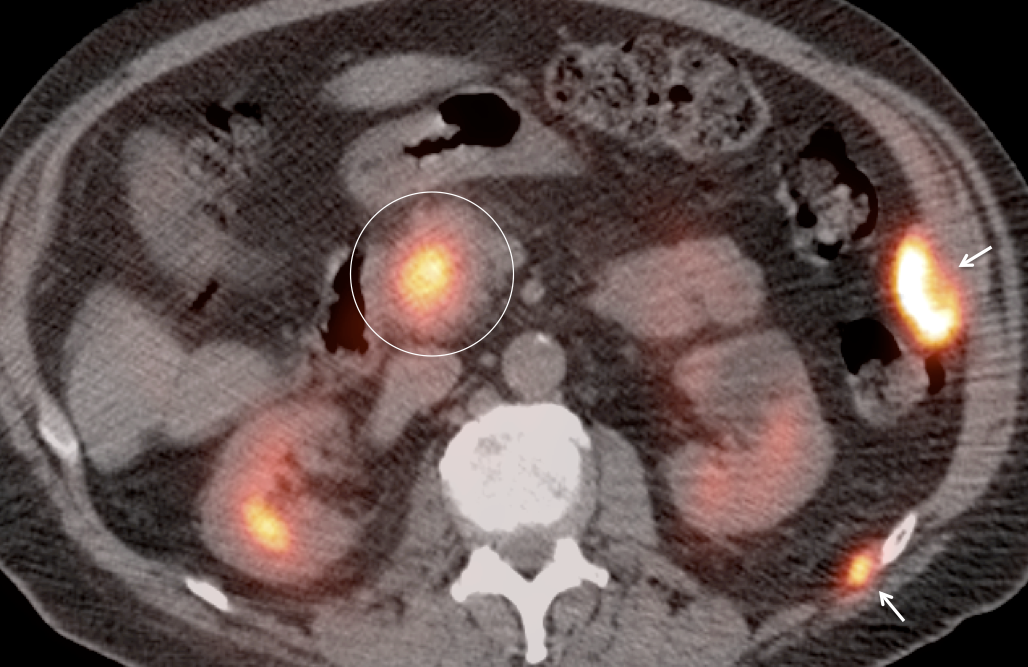

- The more focal and the more intense the uptake, the more likely the lesion is to be malignant.

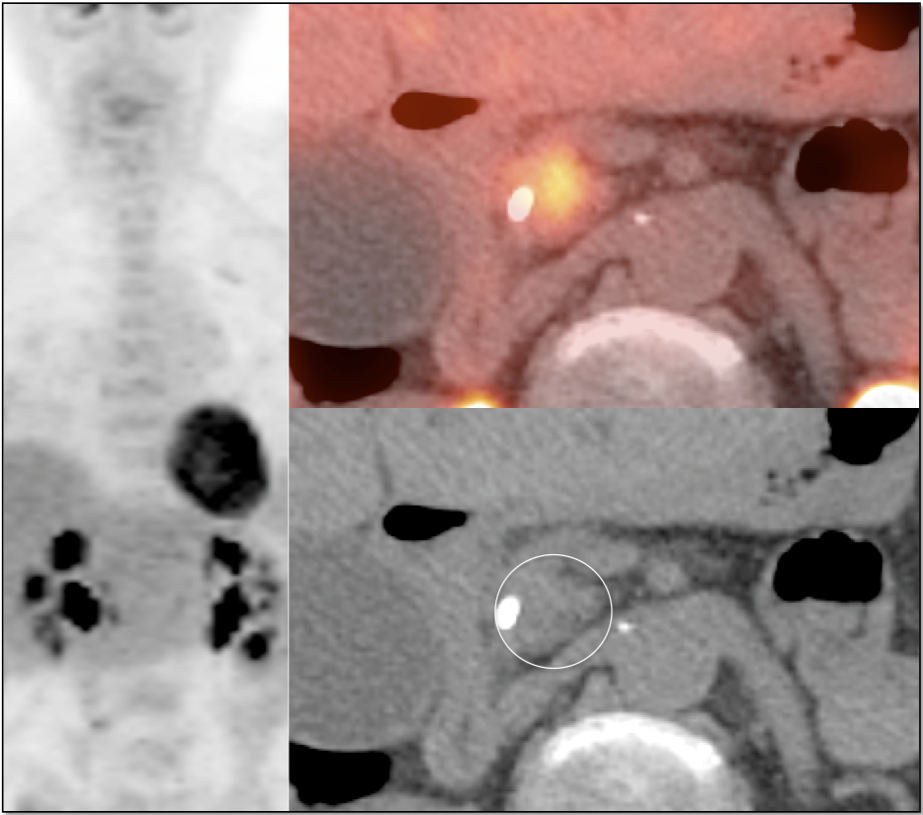

- The presence of associated hypermetabolic nodes dramatically increases the likelihood of malignancy.
What We Report:
Size, metabolic activity & location of the primary lesion and representative metastatic lesions are reported.

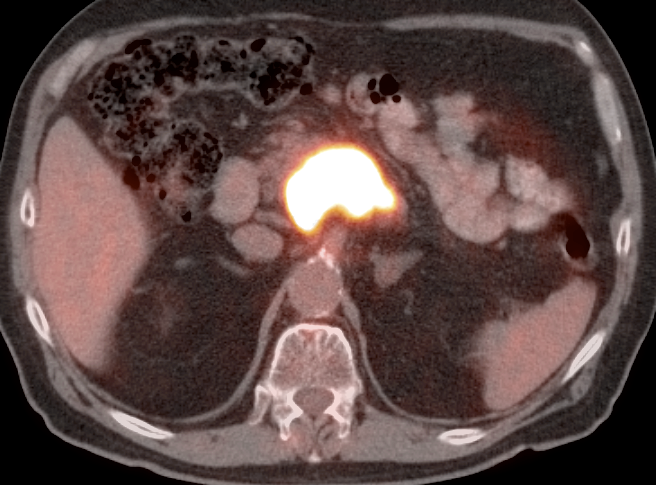

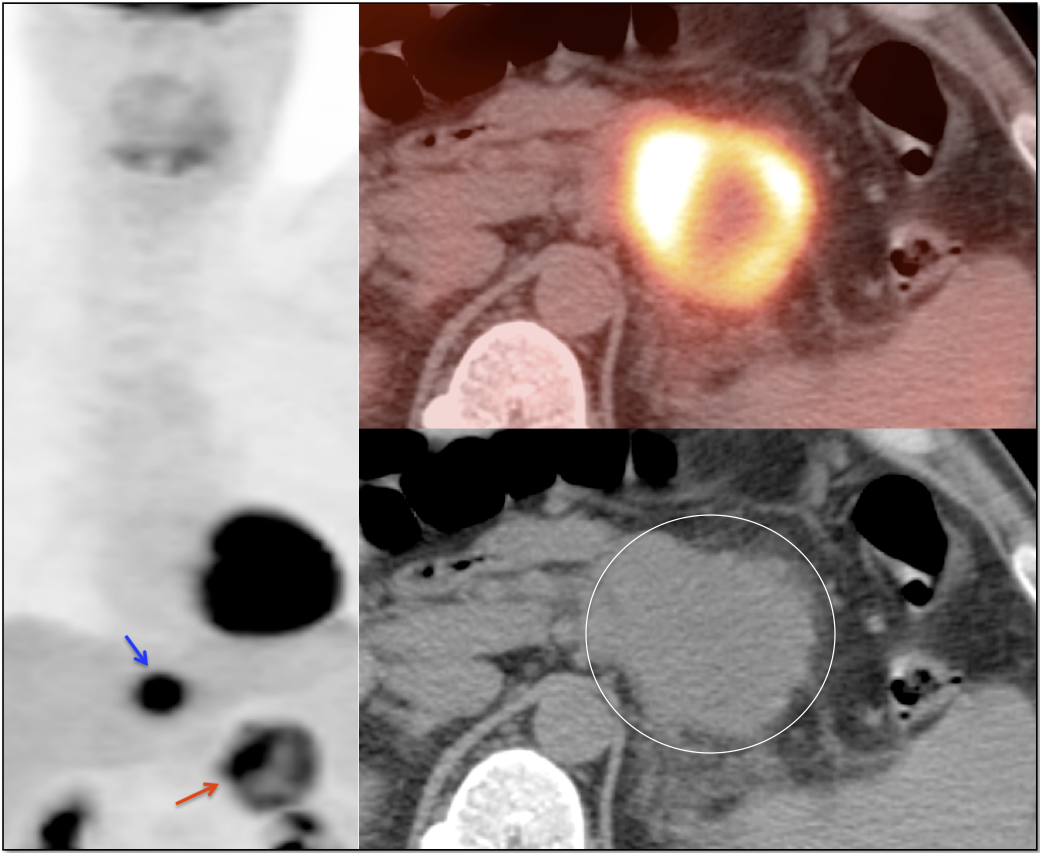

- Primary Lesion: Size, metabolic activity & location.
- Loco-Regional Disease: Usually hypermetabolic lymph nodes.

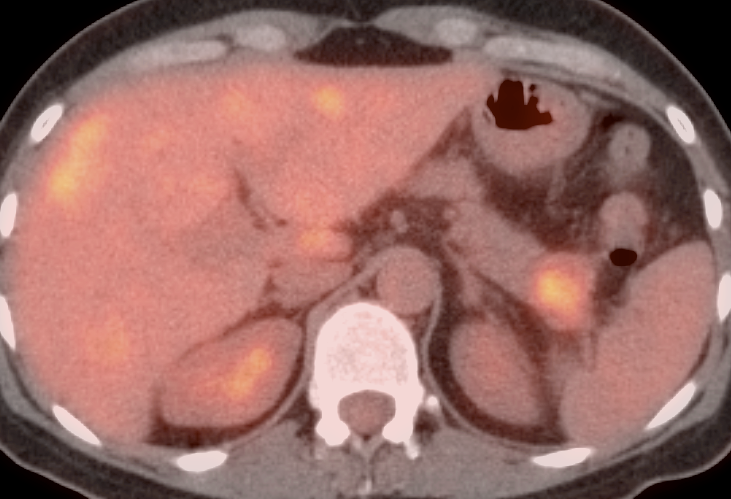

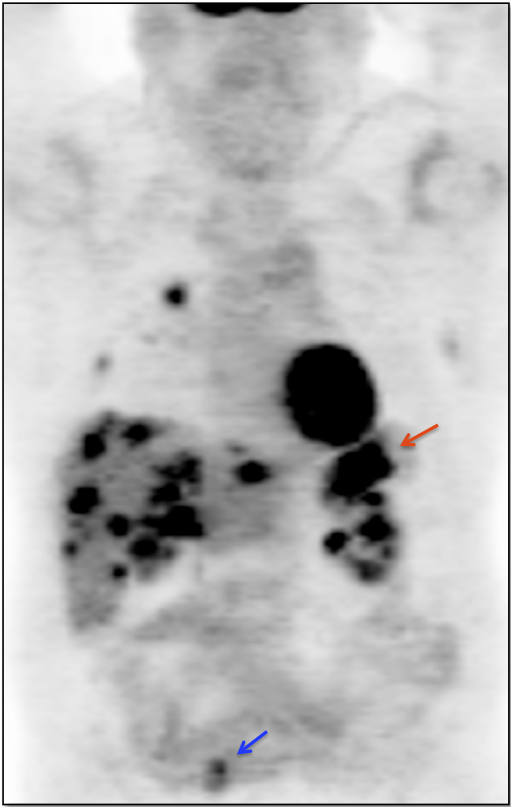

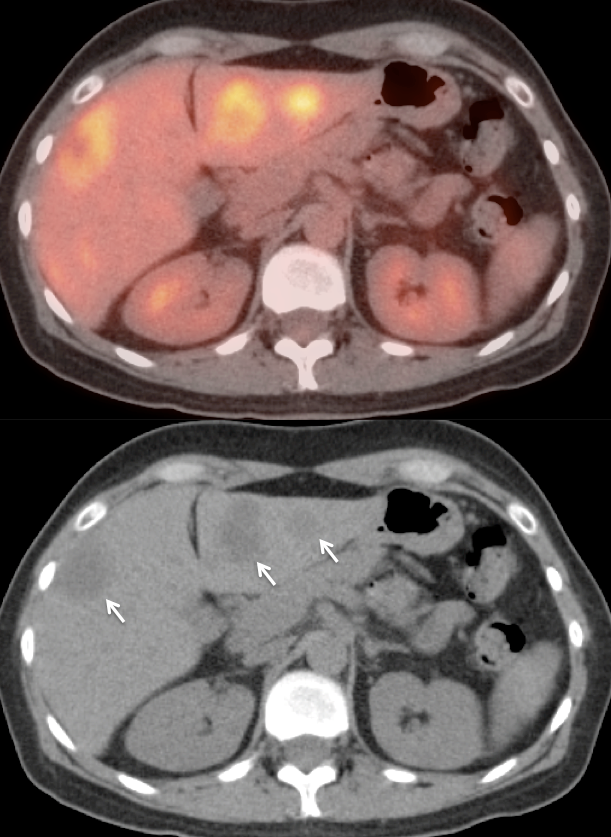

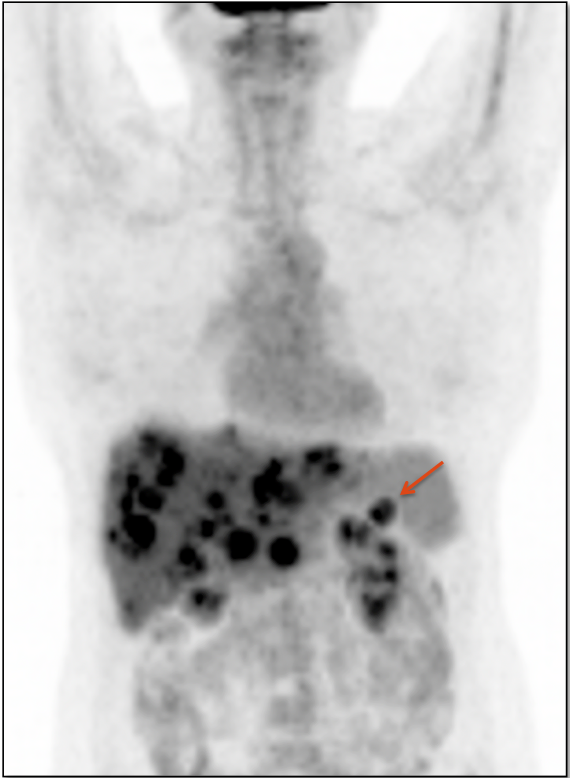

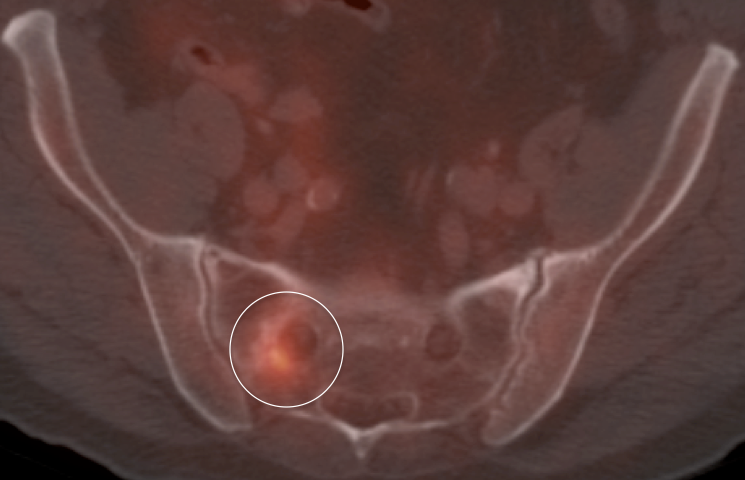

- Distant Disease: Most commonly to the liver, peritoneum, lung, pleura, bones and adrenal glands.
False Positives:

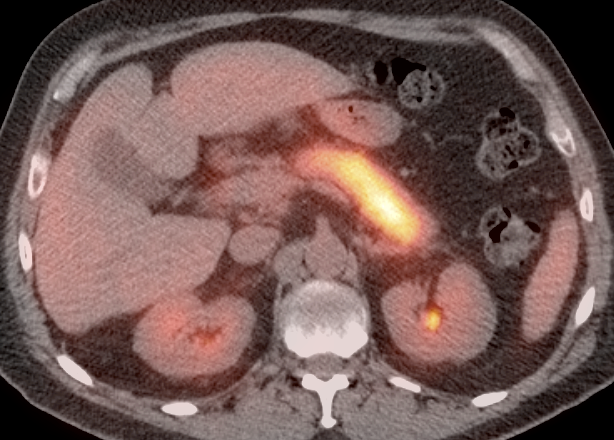

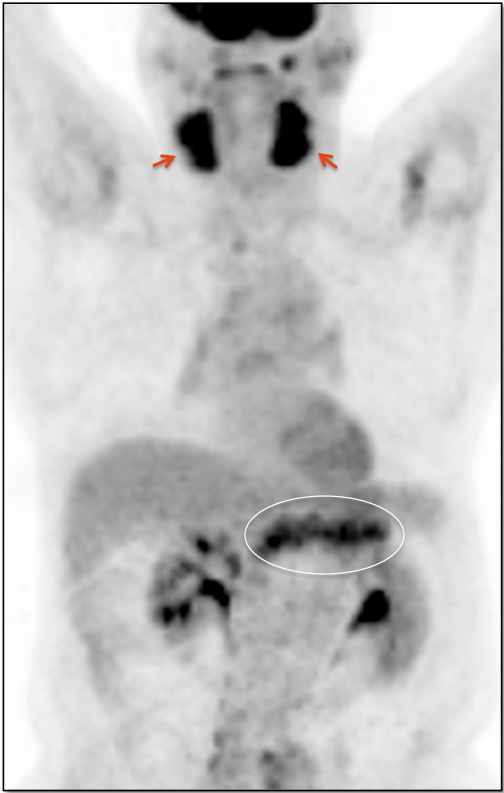

- Inflammation: Pancreatitis (acute or chronic) can cause intense parenchymal uptake. Such uptake, however, is usually non-focal, involving a significant segment of the pancreas.
- Benign Lesions: Several benign lesions can demonstrate varying degrees of FDG uptake, including intraductal papillary mucinous neoplasm (IPMN), serous cystadenoma, and hemorrhagic pseudocysts.
False Negatives:
- Lesions < 8.0 mm, considered “beneath the resolution of PET.”
- Hyperglycemia: While elevated blood glucose can limit the PET/CT evaluation of any malignancy (addressed in detail, here), many radiologists believe it to have an especially significant effect in decreasing the FDG uptake of some pancreatic lesions.
