Baastrup Disease (Interspinous Uptake of FDG)
Baastrup’s Disease (“kissing spine”) is the result of degenerative changes between adjacent spinous processes and inflammation of the interspinous soft tissues. Patients are typically asymptomatic.
It has a very characteristic PET/CT appearance, with single or multiple levels of linear uptake present in the interspinous regions (best appreciated on the sagittal fused images).
It should not be confused with metastatic disease to the spinous process (always confirm the interspinous location of this uptake on the sagittal view, not in the axial plane).
Case 1
Case 1 (Image 2)
The corresponding sagittal CT images reveal the focus of intense uptake to lie between two contiguous spinous processes (“interspinous”). The spinous processes themselves are unremarkable. This is the typical PET/CT appearance of Baastrup Disease, a non-neoplastic finding.

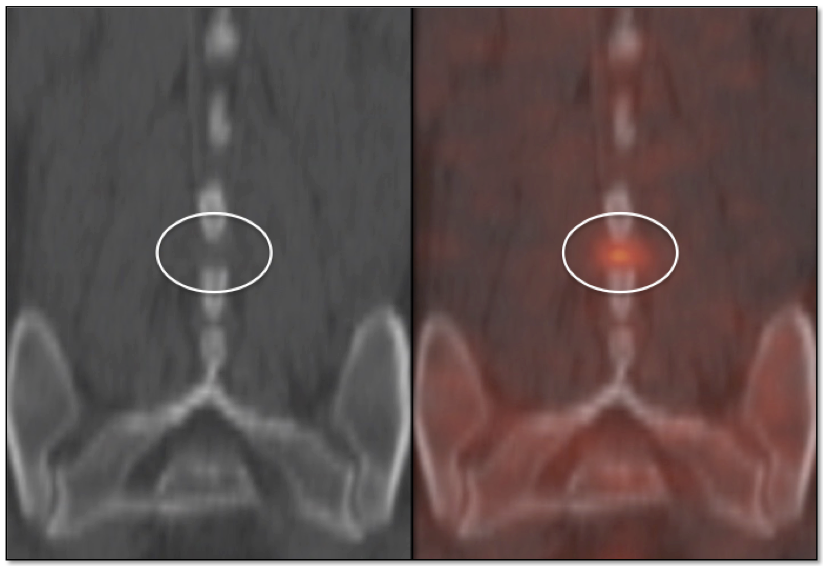

Case 1 (Image 3)
Corresponding coronal images also demonstrate the interspinous location of the metabolic activity.
Case 2

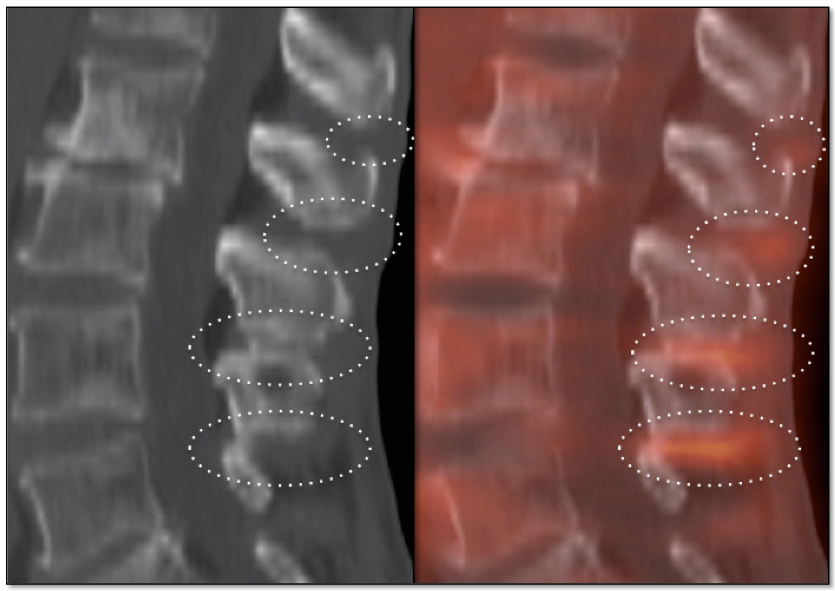

Case 2 (Image 2)
Sagittal CT images confirm the uptake to be interspinous in location, characteristic of Baastrup Disease.
Case 2 (Image 3)
Corresponding coronal images also demonstrate the interspinous location of the metabolic activity, diagnostic of Baastrup Disease.
Case 3

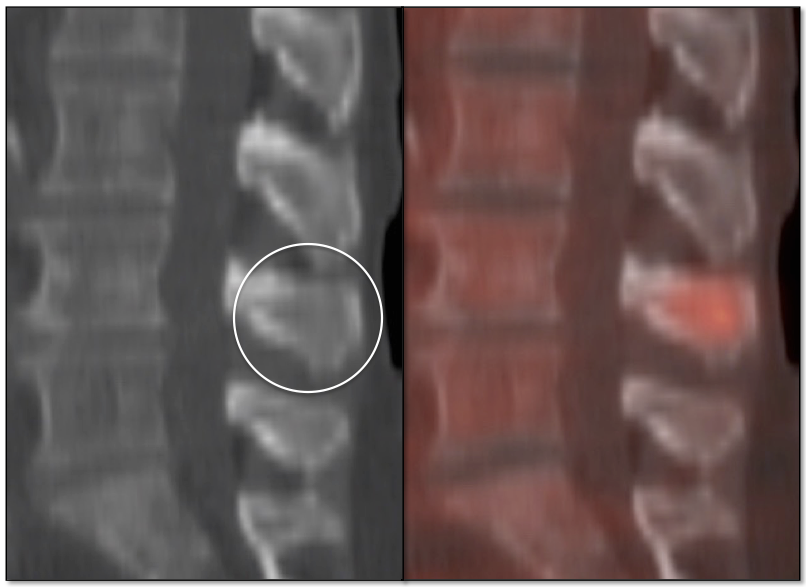

Case 3 (Image 2)
The corresponding sagittal CT images, however, reveal that this uptake is not interspinous, but is actually located within the spinous process. Even though an associated osseous lesion is not clearly demonstrated on the bone windows, this is highly suspicious for metastatic disease.
Case 4

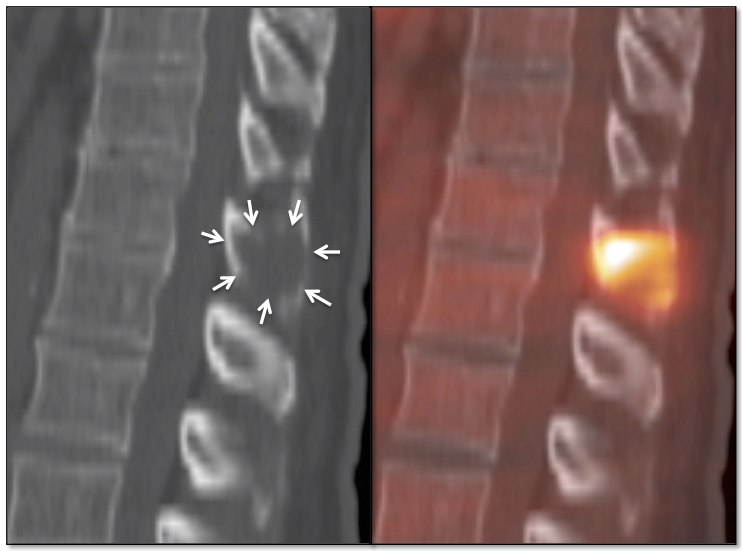

Case 4 (Image 2)
Corresponding sagittal CT images confirm the hypermetabolic lytic metastasis within the spinous process (certainly not “interspinous” in location).
