Tampon
A tampon is readily identified on CT images by its well-defined tubular appearance, its anatomic location in the pelvis, and its air-equivalent density.
Tampons are nearly always non-avid on PET images.
Occasionally, tampons can be intensely FDG-avid. This activity has been presumed inflammatory, related to menses. More recently, however, it has been demonstrated that this tampon uptake is more likely related to urinary contamination.
While such activity is normal, it is worth mentioning in the body of the report, so that clinicians do not call you about this rather impressive looking finding.
Case 1

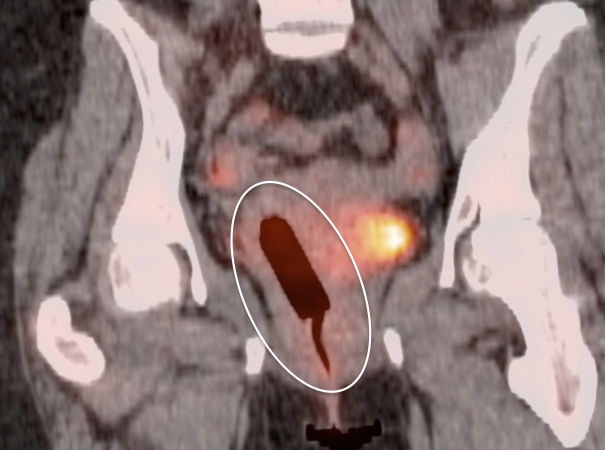

Case 1 (Image 2)
The coronal image clearly defines the characteristic morphology of a tampon, which are nearly always non-avid.
Case 1 (Image 3)
Typical sagittal appearance of a normal, non-avid tampon. Its morphology, location and air-equivalent density are virtually diagnostic.
Case 2

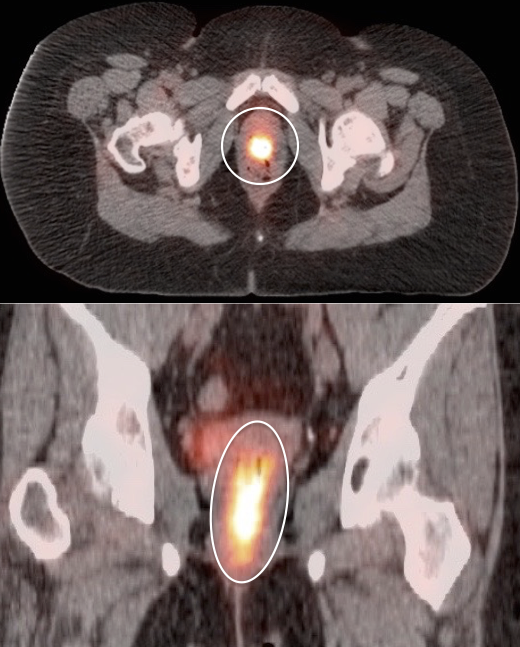

Case 2 (Image 2)
The intense metabolic activity corresponds to an elongated region of air-equivalent density in the vagina. The morphology and density are consistent with a tampon. Its intense FDG uptake is likely related to urinary contamination.
Case 3

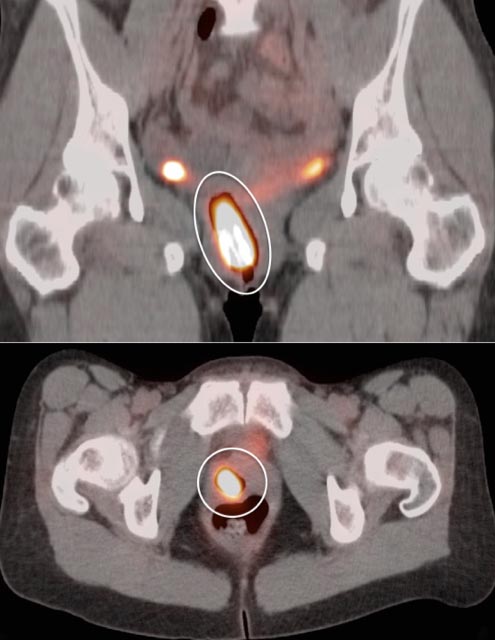

Case 3 (Image 2)
The intense metabolic activity corresponds to an elongated region of mixed air and soft tissue-equivalent density in the vagina. The morphology and CT appearance are consistent with a tampon. Its intense FDG uptake is likely related to urinary contamination.
