Inguinal Herniorrhaphy
Special attention to inguinal herniorrhaphy is made here due to the frequency of its misinterpretation by PET/CT radiologists (a general discussion of post-operative inflammatory changes can be found here).
While nearly all post-operative hypermetabolic inflammatory changes in the body resolve within a few months, intense FDG uptake secondary to inguinal herniorrhaphy can persist for many years. Such changes can be seen with or without surgical mesh placement.

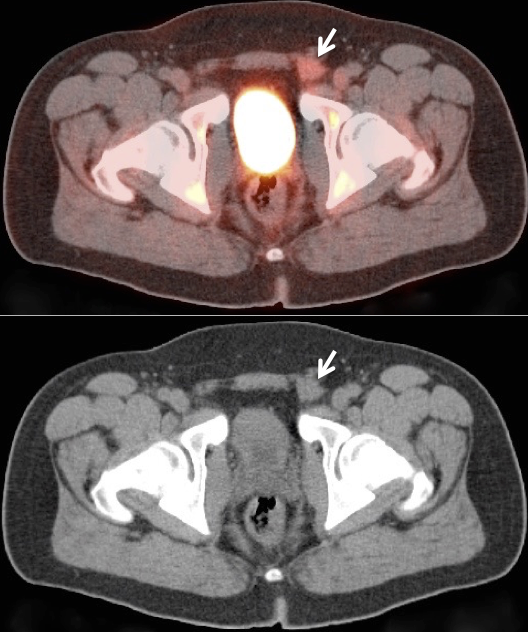

Ill-defined and often intensely-avid soft tissue density will be seen in the inguinal region and/or along the most distal aspect of the external iliac chain (within the pelvis), abutting the inguinal region.
Post-herniorrhaphy scar tissue can appear very nodular and very hypermetabolic, inducing considerable anxiety in the inexperienced PET/CT radiologist.
Not infrequently, the metabolic activity of the resulting tissue will fluctuate — decreasing or increasing on a follow-up exam.
