Silicone Injections
Despite the known risks of silicone migration, necrosis and silicone embolism, it is not uncommon to see evidence of silicone injections on routine PET/CT exams. The procedure is more commonly performed in the buttocks than in the breasts.

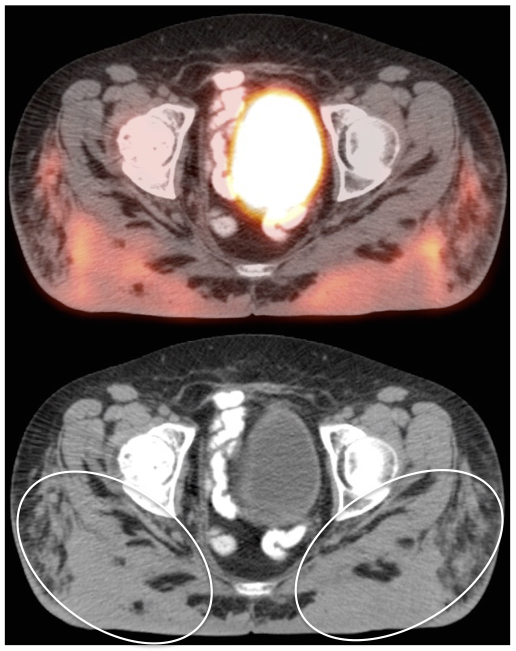

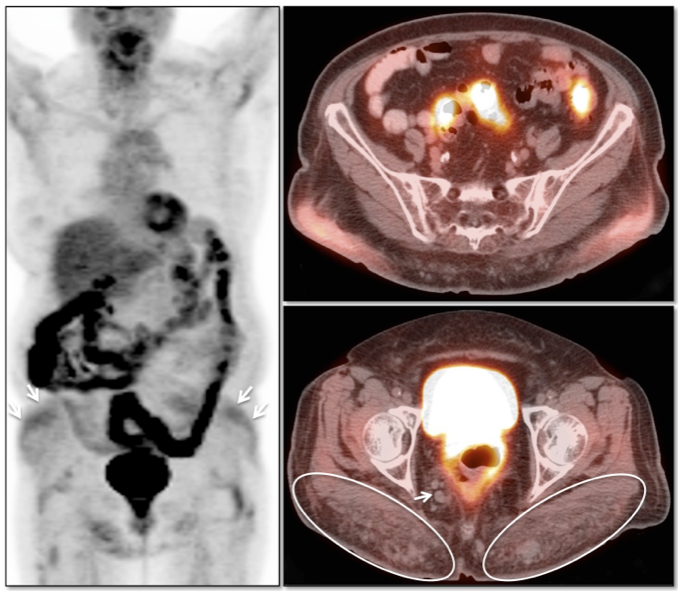

The CT images typically demonstrate confluent nodules within areas of ill-defined soft tissue stranding. When gluteal injections are encountered, it is not uncommon to see evidence of silicone migration into the ischiorectal fossae, perineum and vulva.

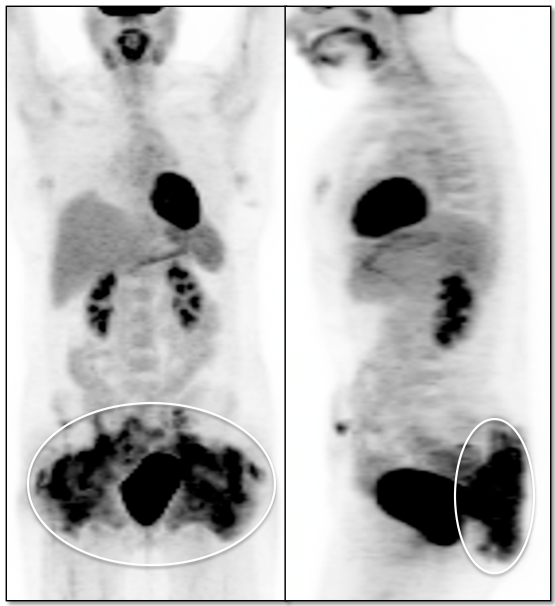

These soft tissue abnormalities frequently demonstrate areas of mild to moderate metabolic activity. Occasionally, silicone injections can be intensely FDG-avid. This metabolic activity can persist for years.
Once familiar with the typical PET/CT appearance, silicone injections rarely pose a diagnostic dilemma.
“Ill-defined nodular soft tissue density is noted scattered throughout the gluteal regions, portions of which are moderately avid (SUV 2.6). This typically reflects the sequela of a prior cosmetic procedure. Please correlate with clinical history.”
