Sclerotic Transformation
Intensely FDG-avid lytic bone lesions (or lesions visible only on the PET portion of the exam) often appear as non-avid sclerotic foci on follow-up exams.
In these cases, we consider these lesions to have undergone “sclerotic transformation”.
If these now sclerotic lesions are non-avid, they are felt to represent successfully treated metastases and no longer reflect active malignancy.
If metabolic activity persists within these sclerotic lesions, residual active malignancy is suspected.

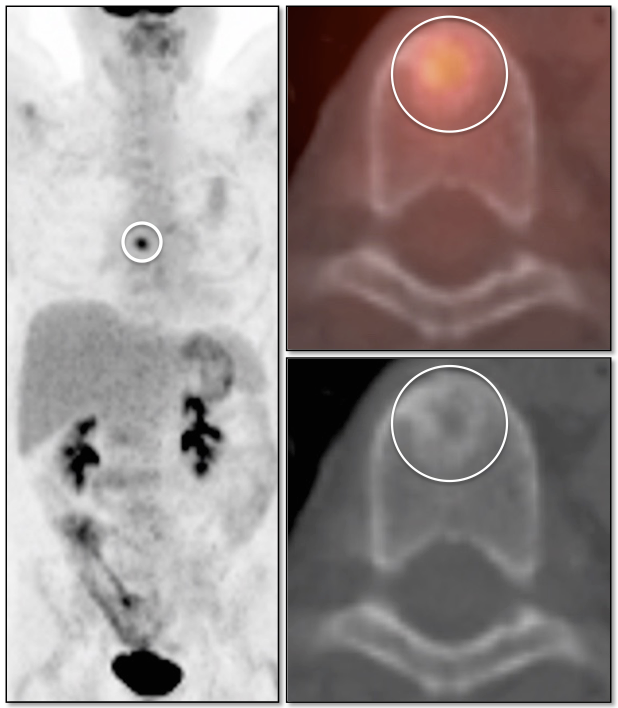

Case 1

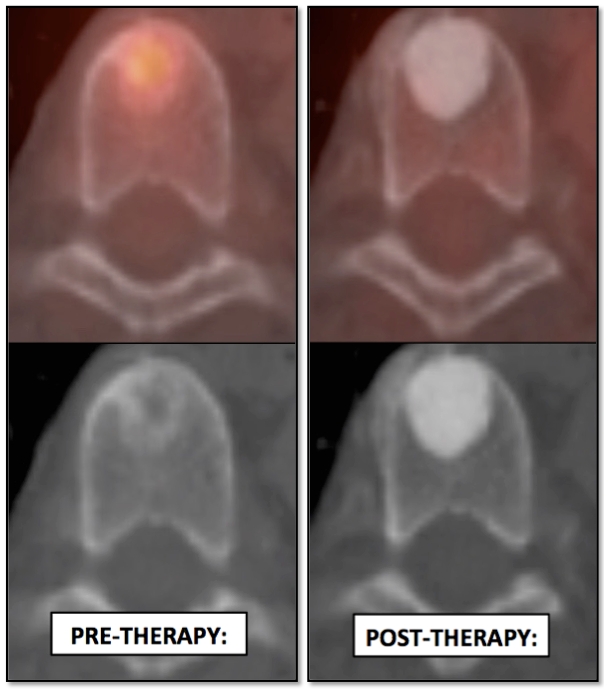

Case 1 (Image 2)
Post-treatment scan demonstrates the lesion to now be densely sclerotic and non-avid. This is consistent with “sclerotic transformation”. Its non-avid appearance indicates successful treatment.

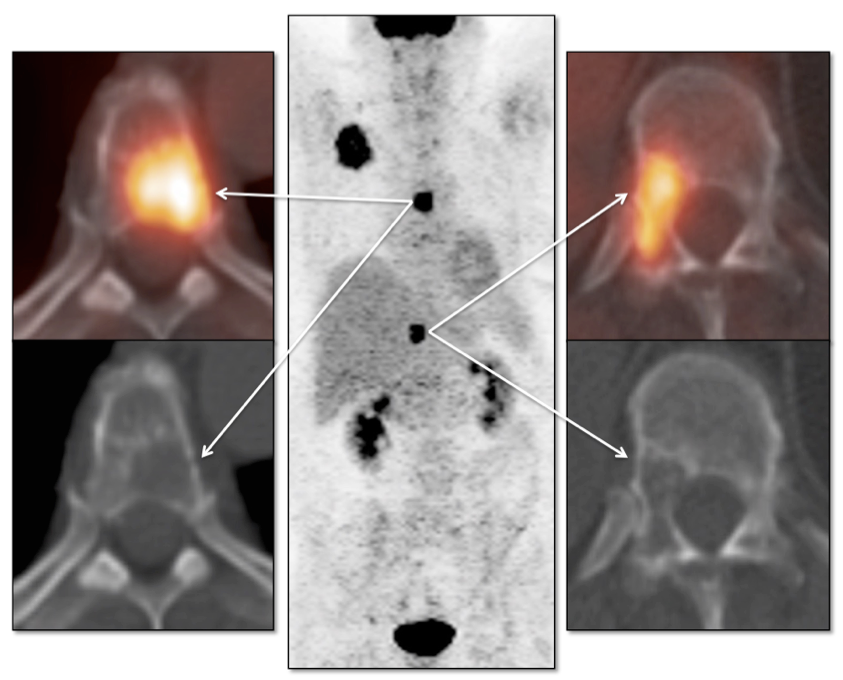

Case 2

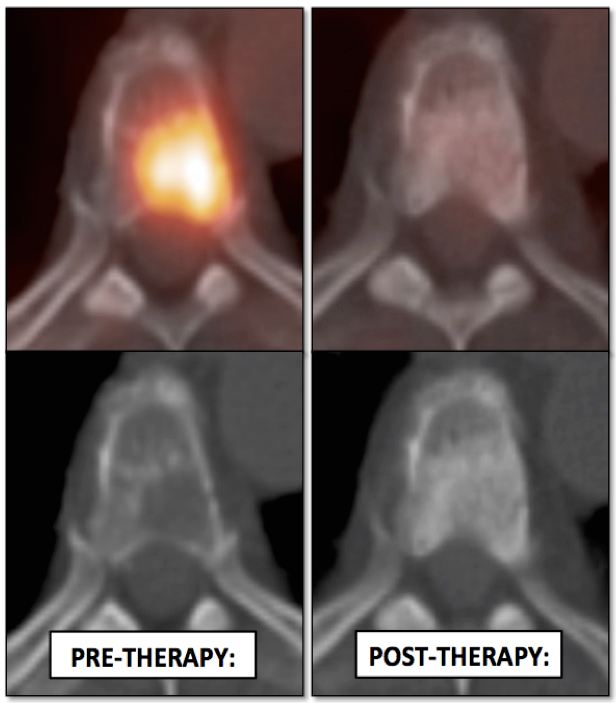

Case 2 (Image 2)
Post-therapy scan of the T6 lesion demonstrates “sclerotic transformation”, with the metastasis now appearing sclerotic and non-avid, indicating successful treatment.

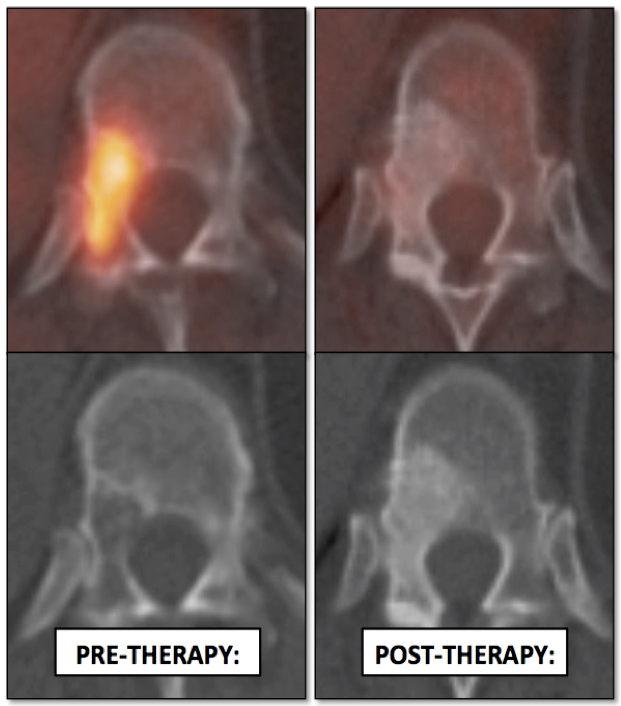

Case 2 (Image 3)
Post-therapy scan of the T11 lesion also demonstrates “sclerotic transformation”, with the metastasis now appearing sclerotic and non-avid, indicating successful treatment.
